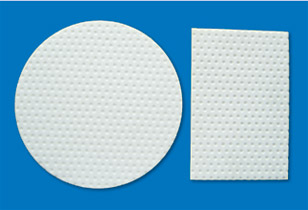

[ Features ]
|
PTFE bearing slide is made from high strength PTFE suspension resin
by methods of moulding, sintering and finalizing the design to various
sizes. Different fillings can be used to achieve special demands. It can
also be adhered to rubber and metal with one side etched.
PTFE has very low coefficient of friction, it is anticorrosive and not aging, can be widely used in temperature from -180  to +260 .
|
|
|
|
[ Main properties ]
|
|
Properties
|
Unit
|
Result
|
|
Apparent density
|
g/cm3
|
2.10-2.25
|
|
Tensile strength (min)
|
MPa
|
30
|
|
Ultimate elongation (min)
|
%
|
250
|
|
|
[ Specifications ]
|
|
Round Type
|
|
Diameter(mm)
|
Thickness (mm)
|
Diameter(mm)
|
Thickness (mm)
|
Diameter(mm)
|
Thickness (mm)
|
|
Φ140
|
6-8
|
Φ240
|
6-8
|
Φ415
|
6-8
|
|
Φ150
|
6-8
|
Φ260
|
6-8
|
Φ636
|
6-8
|
|
Φ160
|
6-8
|
Φ300
|
6-8
|
Φ740
|
6-8
|
|
Φ180
|
6-8
|
Φ320
|
6-8
|
Φ852
|
6-8
|
|
Φ210
|
6-8
|
Φ340
|
6-8
|
|
|
|
|
|
Square Type
|
|
Standard (mm)
|
Thickness (mm)
|
|
300X300
|
5-10
|
|
400X400
|
5-10
|
|
500X500
|
5-10
|
|
600X600
|
5-10
|
|
800X800
|
5-10
|
|
900X900
|
5-10
|
|
1000X1000
|
5-10
|
|
|
[ Applications ]
|
|
Bridge bearing slide, building slide, vehicle slide.
|
